Quzhou Horbon Mining Parts Co., Ltd. is one of the leading manufacturers and suppliers of side cheek plate in China. With abundant experience, we are committed to providing high quality customized service and OEM service to global clients. Welcome to buy advanced side cheek plate made in China here from our factory. Contact us for quotation.
What This Part Does

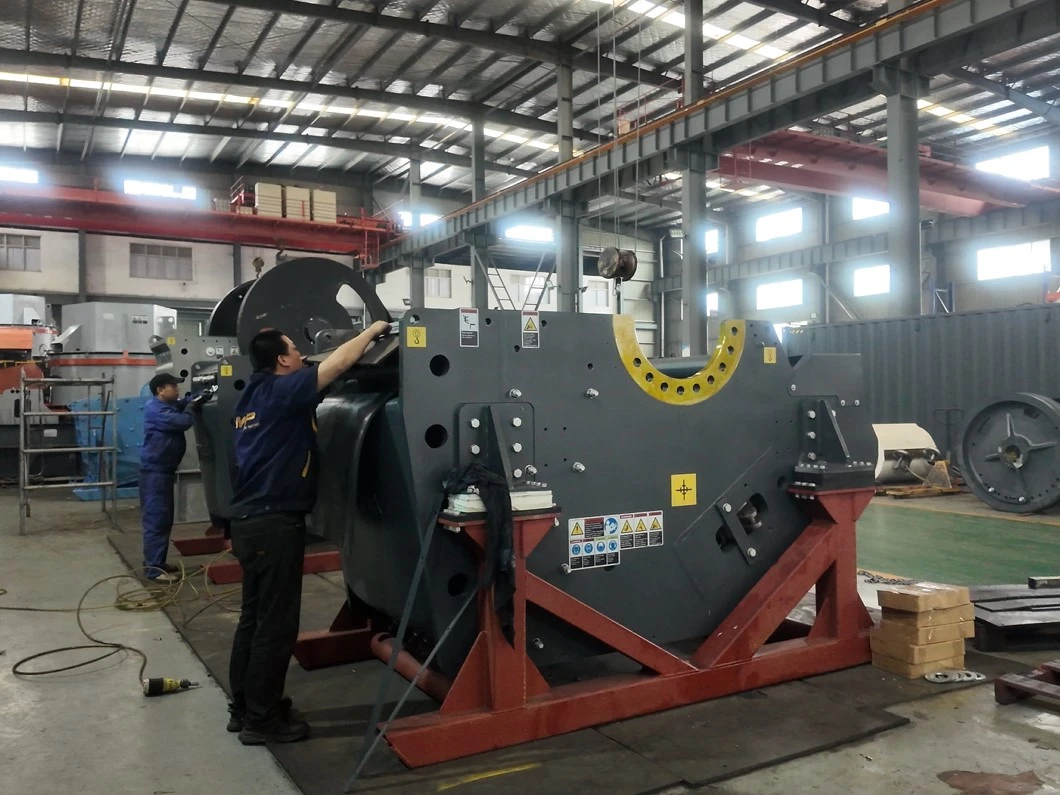

A side cheek plate is the replaceable wear liner bolted along the inner walls of a jaw crusher's crushing chamber. Its job is straightforward but critical: absorb abrasive contact from rock and ore so the crusher's cast-steel frame does not. Most crushing force in a jaw crusher runs between the fixed jaw and the swing jaw, but material also drags sideways against the chamber walls as it works its way down toward the discharge opening - this lateral abrasion is exactly what the cheek plate is built to intercept.
Most jaw crushers use a two-piece cheek plate arrangement: an upper plate covering the feed zone, where impact and abrasion are most severe, and a lower plate covering the area nearer the discharge opening, where wear progresses more slowly. This split design means the faster-wearing upper plate can be replaced on its own, without discarding a lower plate that still has useful service life.
Left unprotected - or protected by a poorly fitted liner - that lateral abrasion moves from a low-cost consumable part to the crusher frame itself, a structural component that is far more expensive and far slower to repair.
Quzhou Horbon Mining Parts Co., Ltd. is a factory-direct manufacturer based in Quzhou, China, producing cheek plate sets for jaw crushers used by plants across Southeast Asia, the Middle East, Africa, Europe, the Americas, South Asia and Australia.
Key Advantages
Material matched to wear pattern. High manganese steel work-hardens under repeated impact, making it well suited to the feed-zone upper plate; Cr-Mo alloy steel offers a balance of hardness and toughness for lower-impact, higher-abrasion zones. Material is selected per your ore type and duty cycle, not applied as a one-size-fits-all default.
Precision casting and CNC machining keep the mounting face and bolt pattern accurate, minimizing gaps where material could bypass the plate and reach the frame directly.
Heat-treatment quenching hardens the wear surface without making the plate brittle, so it holds up against sudden impact loads such as tramp metal or oversized feed - a common failure mode for a poorly heat-treated side cheek plate.
Factory-direct pricing. As a manufacturer with no trading-company layer, pricing reflects raw material, machining and quality-control cost - not distributor margin.
Applications
Such as the following applications:
Aggregate and quarry crushing lines, where side abrasion from granite or basalt is the dominant failure mode on frame liners
Mining operations processing high-silica ore, where side-wall wear tends to accelerate faster than in softer material
Recycling and demolition crushing, where mixed material composition creates uneven, localized wear pockets
Plants standardizing on one factory-direct source after experiencing inconsistent fit or premature wear from multiple liner suppliers
Parts Assembly Reference
|
Item |
Detail |
|
Structure |
Two-piece set (upper plate + lower plate) |
|
Material options |
High manganese steel / Cr-Mo alloy steel |
|
Manufacturing process |
Precision casting, CNC machining |
|
Surface treatment |
Heat-treatment quenching |
|
Compatible equipment |
Jaw crushers (fit verified against your crusher model) |
|
Dimensions (thickness / length / bolt spacing) |
Varies by crusher model and brand - send us your model or a worn sample for an exact-match drawing |
|
Customization |
OEM/ODM available |
Questions Buyers Usually Ask
Q: What is a side cheek plate used for in a jaw crusher?
A: It protects the crusher frame's inner side walls from abrasive wear as material moves through the crushing chamber, so the frame itself doesn't take direct abrasive contact.
Q: How do I know when my side cheek plate needs replacement?
A: Watch for visible thinning, gouging, or exposed bolt heads on the plate surface, and for any sign of abrasive contact marks appearing on the frame itself around the plate edges - that's a sign wear has already reached the structural component.
Q: What's the difference between the upper and lower plate?
A: The upper plate sits in the feed zone and takes the heaviest impact and abrasion; the lower plate sits closer to the discharge opening, where material is smaller and wear is generally slower.
Q: Which material is better - manganese steel or Cr-Mo alloy steel?
A: High manganese steel work-hardens under impact, making it a strong choice for the upper plate in high-impact feed zones. Cr-Mo alloy steel holds a more stable hardness and suits zones with steady abrasion but lower impact. We'll recommend a combination based on your ore and crusher duty cycle.
Q: How often should side cheek plates be inspected?
A: Inspection frequency depends on ore abrasiveness and throughput; as a general practice, checking during routine jaw-plate inspections is a reasonable baseline, since both wear at broadly comparable rates in most applications.
Q: Can a worn plate cause frame damage if not replaced in time?
A: Yes - once a plate wears through, abrasive material contacts the frame directly, which can lead to permanent structural wear that's significantly more costly to address than a liner replacement.
Q: Do the upper and lower plates need to be replaced together?
A: Not necessarily. Because they wear at different rates, it's common to replace the upper plate more frequently and keep the lower plate in service longer, as long as it hasn't reached its wear limit.
Q: How is a side cheek plate installed?
A: Installation follows the crusher's standard bolt-on procedure along the chamber's inner wall. We provide installation guidance documentation with each order to support your maintenance team.
Q: Is Horbon a manufacturer or a trading company?
A: Horbon is a pure manufacturing factory based in Quzhou, China - not a trading company - producing crusher wear parts directly, which is why we can offer factory-direct pricing and OEM/ODM customization.
Q: How can I get a quote for side cheek plates?
A: Submit your crusher brand and model (or send us a worn sample/drawing) through our inquiry form, and we'll confirm fit and provide a factory-direct quote.
Request a Quote
Send us your jaw crusher's brand and model - or a photo of your worn plate - and we'll confirm the correct fit and quote your side cheek plate set directly from the factory.
