Quzhou Horbon Mining Parts Co., Ltd. is one of the leading manufacturers and suppliers of vertical shaft impactor base frame assembly in China. With abundant experience, we are committed to providing high quality customized service and OEM service to global clients. Welcome to buy advanced vertical shaft impactor base frame assembly made in China here from our factory. Contact us for quotation.

VSI Vertical Shaft Impactor Base Frame Assembly - OEM Replacement Parts

What Is a VSI Base Frame Assembly?

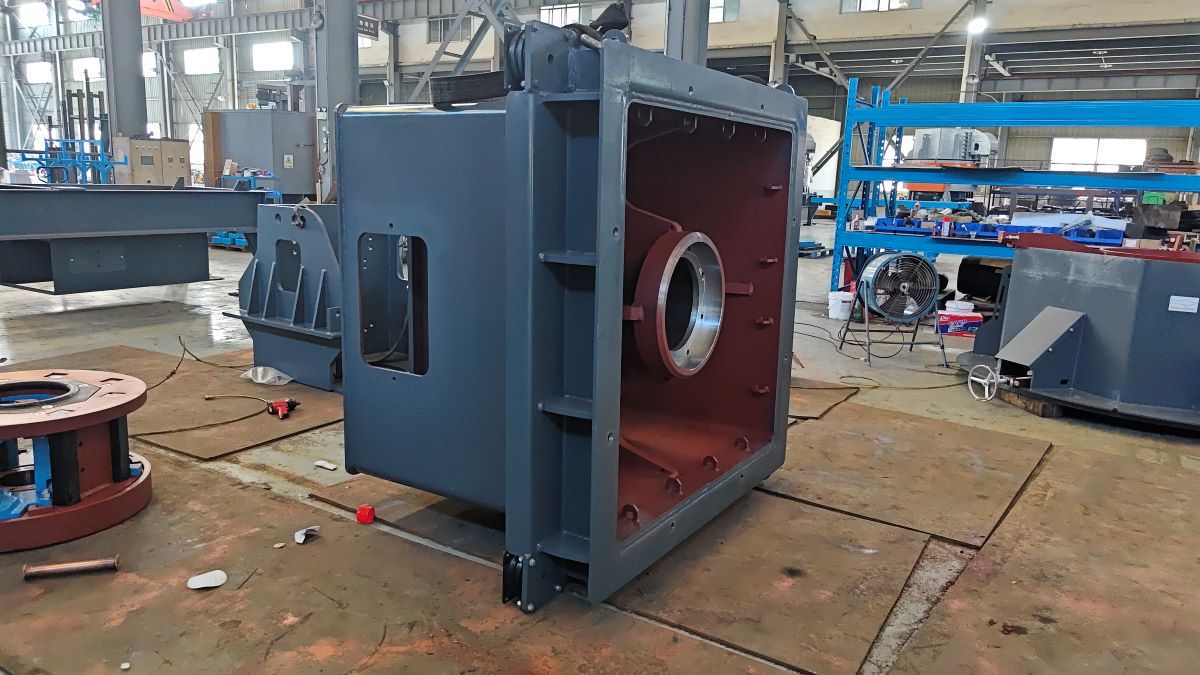

The Vertical Shaft Impactor Base Frame Assembly is the load-bearing structure of the VSI crusher. It supports the rotor system, houses the discharge ports and lining plates, and maintains the dimensional alignment the entire machine depends on. Wear or structural failure at this level triggers rotor imbalance and cascading drivetrain damage - making accurate replacement the highest-priority repair in VSI maintenance.

Horbon manufactures the VSI Base Frame Assembly as a complete 29-component kit or by individual part code, to OEM-equivalent tolerances, with standing stock available.

Differentiated Advantages

01.

Factory-direct, no intermediary.

Horbon is a pure manufacturer in Quzhou, China. Procurement goes directly to the production source - no markup layer, no communication gap on technical requirements.

02.

Complete kit from one supplier.

The assembly spans 29 line items: shell assembly, discharge ports, three variants of base side lining plate, pad connecting plates, base wedges, pins, and the full M10–M24 fastener set. Partial or complete kit orders both accepted; MOQ 5 pieces per line item.

03.

Material verified by instrument, not declaration.

Every raw material batch undergoes OES spectrometry before machining begins. Hardness is confirmed by HRC test; dimensions by CMM. NDT structural inspection and third-party agency inspection are available on request.

04.

ODM from sample, not just drawing.

Ship a worn component with no drawing - our 20-person engineering team performs reverse engineering and returns an initial 2D/3D model within approximately 3 working days.

Applications

Quarry & aggregates (M-sand): Cyclic high-frequency loading; rotor alignment is critical

Metallic ore processing: High-impact loads; chrome-moly alloy steel option recommended

C&D recycling: Combined abrasion + impact; dual-metal lining plate variant available

OEM dealers & service contractors: White-label production with laser-marked branding and custom crating

VSI Base Frame - Full Component List

Item	Part Code	Component Name	Qty
1	3103030217	Shell assembly	1
2	3103030140	Discharge port	2
3	3103030025	Base side lining plate (type A)	4
4	3103030026	Base side lining plate (type B)	4
5	3103020041	Base side lining plate (type C)	4
6	3103030141	Pad	4
7	3103030150	Connecting plate of pad	4
8	6103010008	Washer	48
9	6103110011	Washer	32
10	6103010014	Washer	8
11	6103110036	Washer	4
12	6102010024	Nut	4
13	6101010176	Screw M24×170	4
14	6101020223	Screw M12×50	16
15	6102010010	Nut	16
16	6103010012	Washer	12
17	6102030007	Nut	4
18	6101010138	Screw M20×110	4
19	3103030142	Check plate of discharge port	2
20	6101020094	Screw M20×30	4
21	3103030027	Plate	1
22	6103010051	Washer 10	8
23	6101020273	Screw M10×20	8
24	6103010010	Washer 16	28
25	6101020080	Screw M16×60	14
26	6102010014	Nut M16	14
27	6101020066	Screw M16×30	2
28	3103040002	Base wedge	16
29	6106010003	Pin	16

Technical Specifications

products in drawing
Parameter	Detail
Compatible model	VSI series
Compatible OEMs	Sandvik, Metso, Terex/Trio, Chinese universal, custom OEM
Structural material	High-manganese steel / chrome-moly alloy steel / dual-metal wear-resistant
Process	Precision casting + CNC machining; quench hardening available
Fastener range	M10–M24 (all grades per OEM spec)
MOQ	5 pcs per line item
Lead time	15–30 days (stock items faster)
Trade terms	FOB / CIF, Shanghai or Ningbo
OEM marking	Laser engraving on structural components
Custom packaging	Fumigated timber crate or steel rack frame

Frequently Asked Questions

Q1. Which brands does this base frame assembly fit?

Manufactured to fit Sandvik, Metso, and Terex/Trio VSI platforms, plus Chinese universal-spec machines. Supply your OEM part number or drawing for exact confirmation.

Q2. Can individual components be ordered without buying the full kit?

Yes. Every line item in the 29-part list can be ordered separately. MOQ is 5 pieces per part code. Mixed-code orders are accepted in a single purchase order.

Q3. How is dimensional accuracy verified before shipment?

Shell assembly and structural parts are inspected on a CMM. Raw material composition is verified by OES spectrometry; hardness by HRC test. NDT and third-party inspection are available on request.

Q4. What if I don't have a drawing - only a worn component?

Send us the physical part. Our engineering team reverses-engineers the geometry and produces an initial 2D/3D drawing in approximately 3 working days, then proceeds to production after your approval.

Q5. What material should I specify for high-impact ore processing?

Chrome-moly alloy steel is the recommended selection for high-impact load conditions. For combined abrasion and impact (e.g., C&D recycling), dual-metal wear-resistant construction extends service life. We can also produce to a customer-specified alloy composition if your site has documented wear data.

Q6. What after-sales support is included?

7×24 inquiry response, free replacement for confirmed manufacturing defects, installation guidance documentation, and video/illustrated technical support for field teams.
