Quzhou Horbon Mining Parts Co., Ltd. is one of the leading manufacturers and suppliers of jaw crusher side plate in China. With abundant experience, we are committed to providing high quality customized service and OEM service to global clients. Welcome to buy advanced jaw crusher side plate made in China here from our factory. Contact us for quotation.

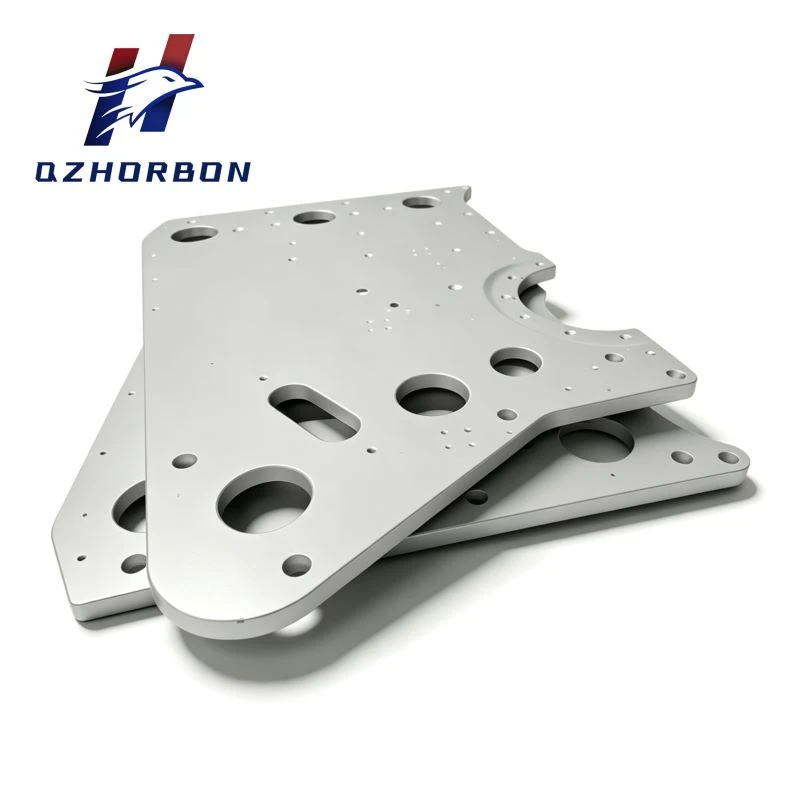

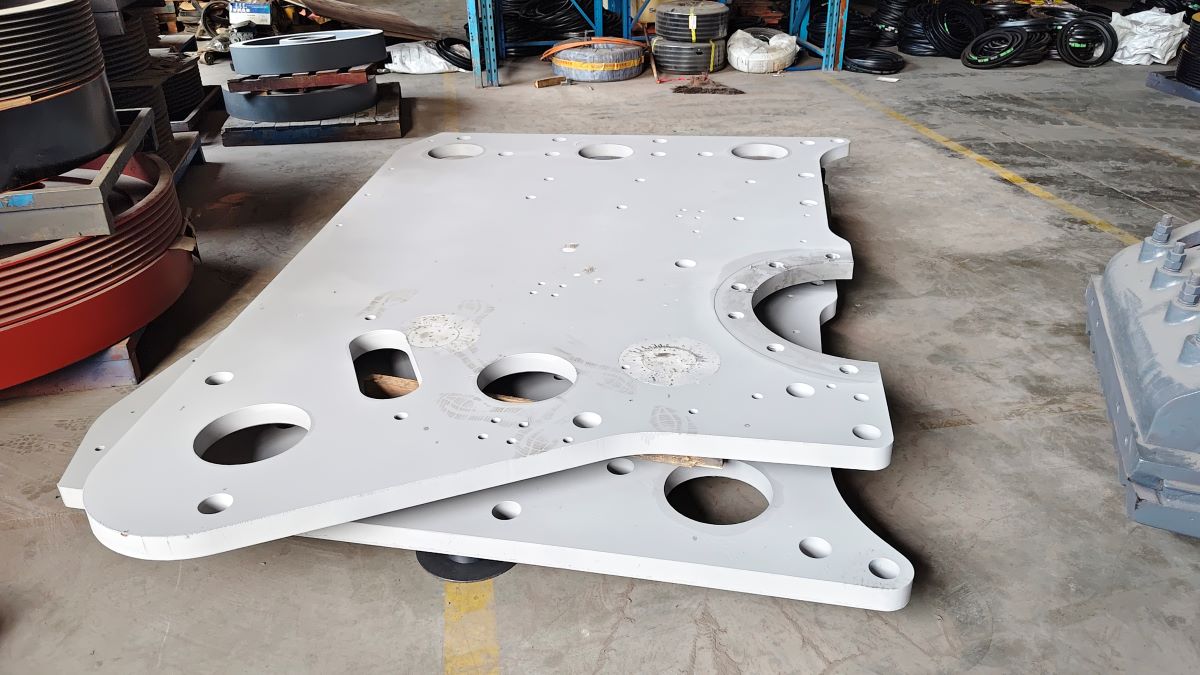

What Is a Jaw Crusher Side Plate
The side plate is a structural wear component mounted on the frame assembly of a jaw crusher, connecting the front frame and rear end while protecting the frame from material spillage and impact. A worn or poorly fitted side plate accelerates frame wear and can cause misalignment of the jaw assembly - precise dimensional matching is critical.
Side Plate Specifications (Reference Example: PEV130 Jaw Crusher)

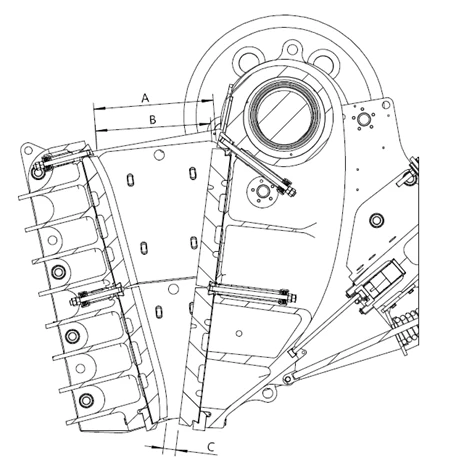

Product drawing
| Item | Specification |
|---|---|
| Component | Side Plate (left / right, 1 each) |
| Mounting | Frame Assembly - between Front Frame and Rear End |
| Connecting hardware | Bushings, hexagon bolts/nuts, plain washers |
| Material options | High manganese steel / Cr-Mo alloy steel / bimetal wear-resistant |
| Processing | Heat treatment & quenching / precision casting / CNC machining |
| Customization | Dimensions, thickness, and material composition available on request |
Note: Dimensions vary by crusher model and brand. Send us your part number or drawing for an exact match.
Compatible Brands & Models
- Metso
- Sandvik
- Terex
- Trio
- Domestic/generic jaw crusher models
- OEM equivalents (custom part numbers accepted)
Material & Manufacturing Capabilities
High manganese steel
for high-impact, high-wear applications
Chrome-molybdenum alloy steel
for balanced toughness and wear resistance
Bimetal wear-resistant construction
extended service life in abrasive conditions
Heat treatment & quenching
precision casting, and CNC machining for dimensional accuracy
OEM & ODM Services
Lorem ipsum dolor sit amet, consectetur adipiscing slit. Nunc blandit dui eget ipsum pulvinar tempor. In laoreet elit sodales, finibs lorem nec, rutrum ipsum.
OEM (Custom Production)
- Laser-engraved logo marking on side plates and other components
- Custom export packaging: fumigated wooden crates or steel frames for anti-rust, transit-safe shipping

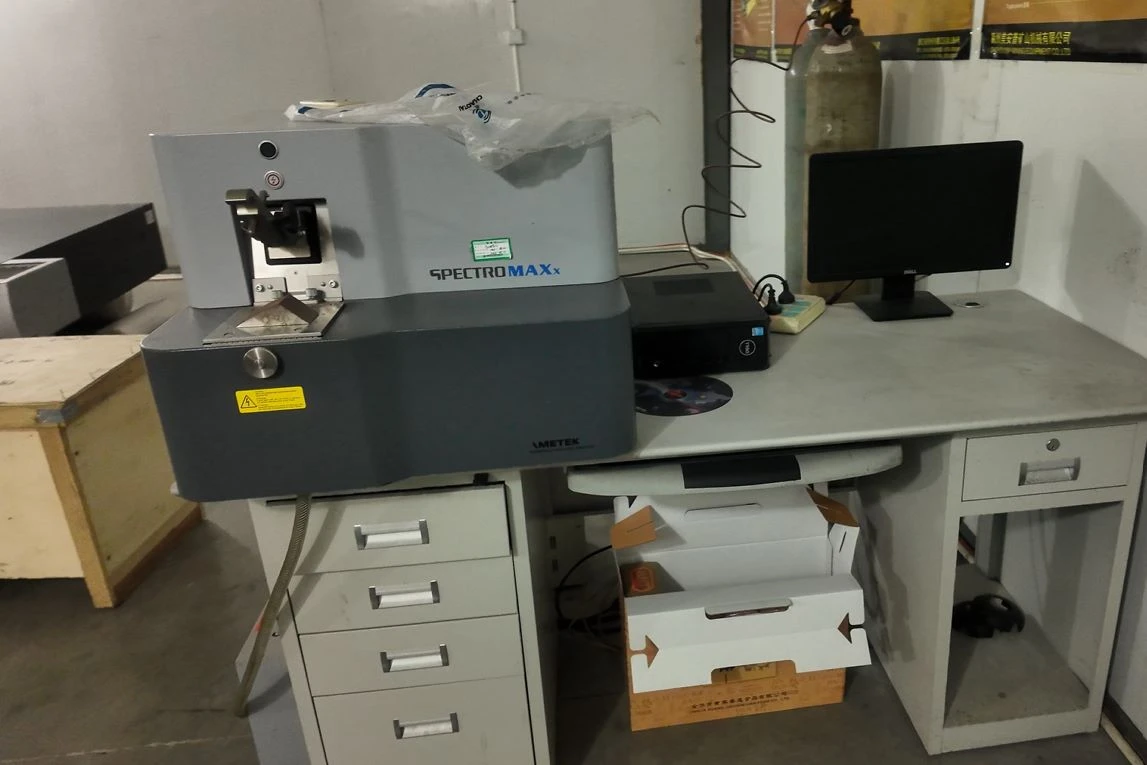

- Custom alloy composition available via in-house lab and melting furnace
- Direct production from your part number or 3D drawing
ODM (Reverse Engineering & Design)
- No drawing? Send a worn side plate sample - our engineering team reverse-engineers and remodels it
- Design optimization for extreme wear or high-impact operating conditions to extend service life
- ~20-person technical design team; first-draft 2D/3D drawings typically delivered within 3 days
Quality Control
Order & Delivery
| Item | Detail |
|---|---|
| MOQ | 5 pieces |
| Standard lead time | 15–30 days |
| Stock availability | Regular inventory maintained for common models |
| Trade terms | FOB / CIF |
| Shipping ports | Shanghai, Ningbo |
After-Sales Support
7×24 online technical response
Free replacement for confirmed quality issues
Installation guidance documents provided
Video and photo/text technical support
Why Choose Horbon for Jaw Crusher Side Plates

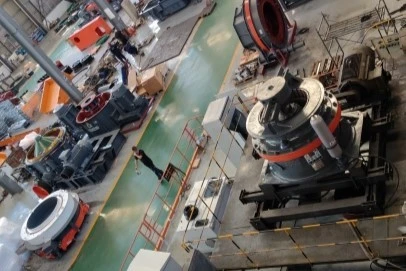

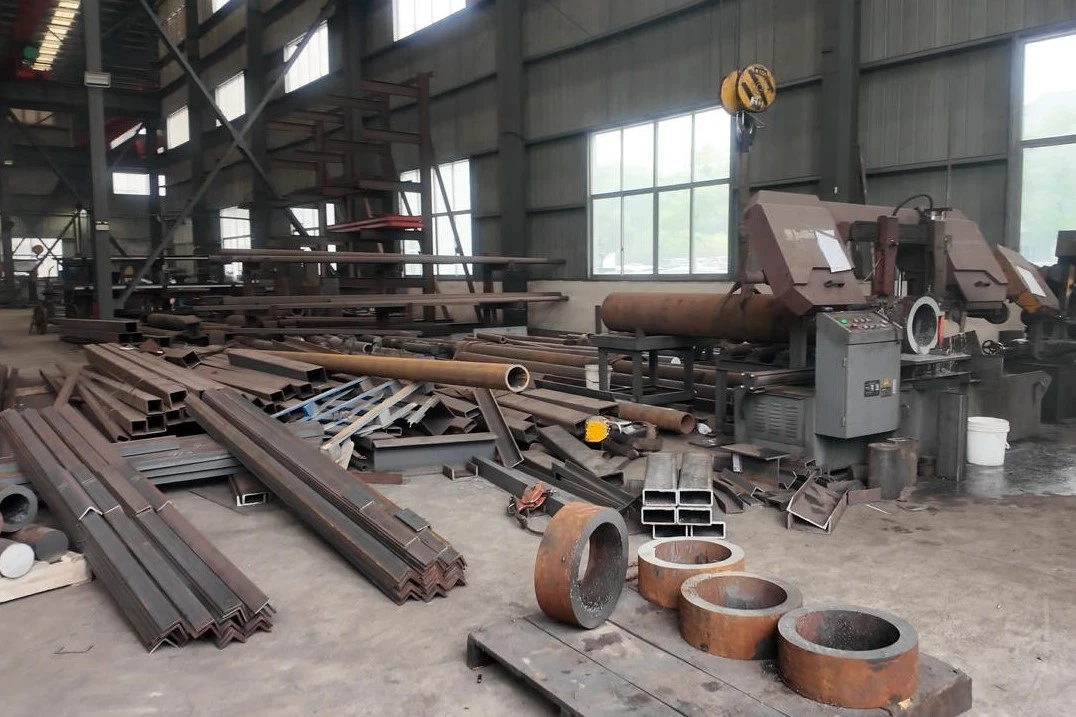

Factory-direct manufacturer based in Quzhou, China (13,000+ sqm facility)
01
50–200 overseas clients served across Southeast Asia, the Middle East, Africa, Europe, North/South America, South Asia, and Australia
02

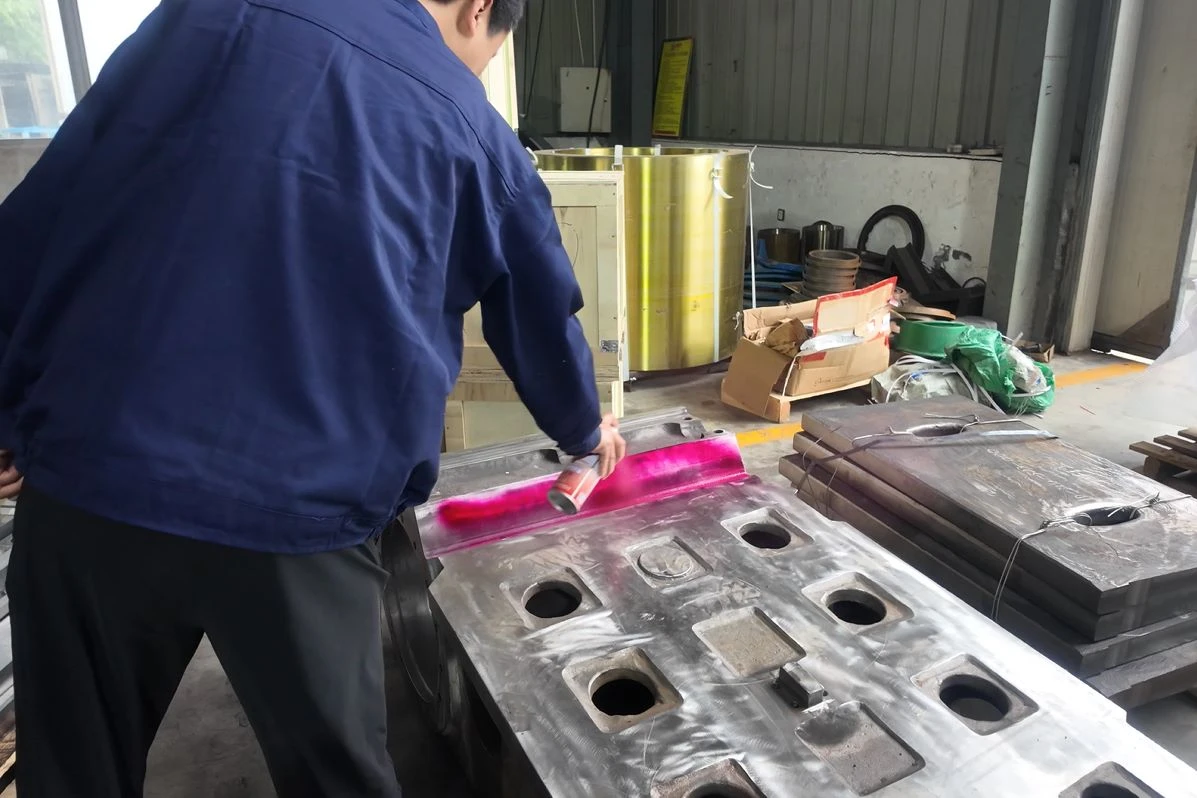

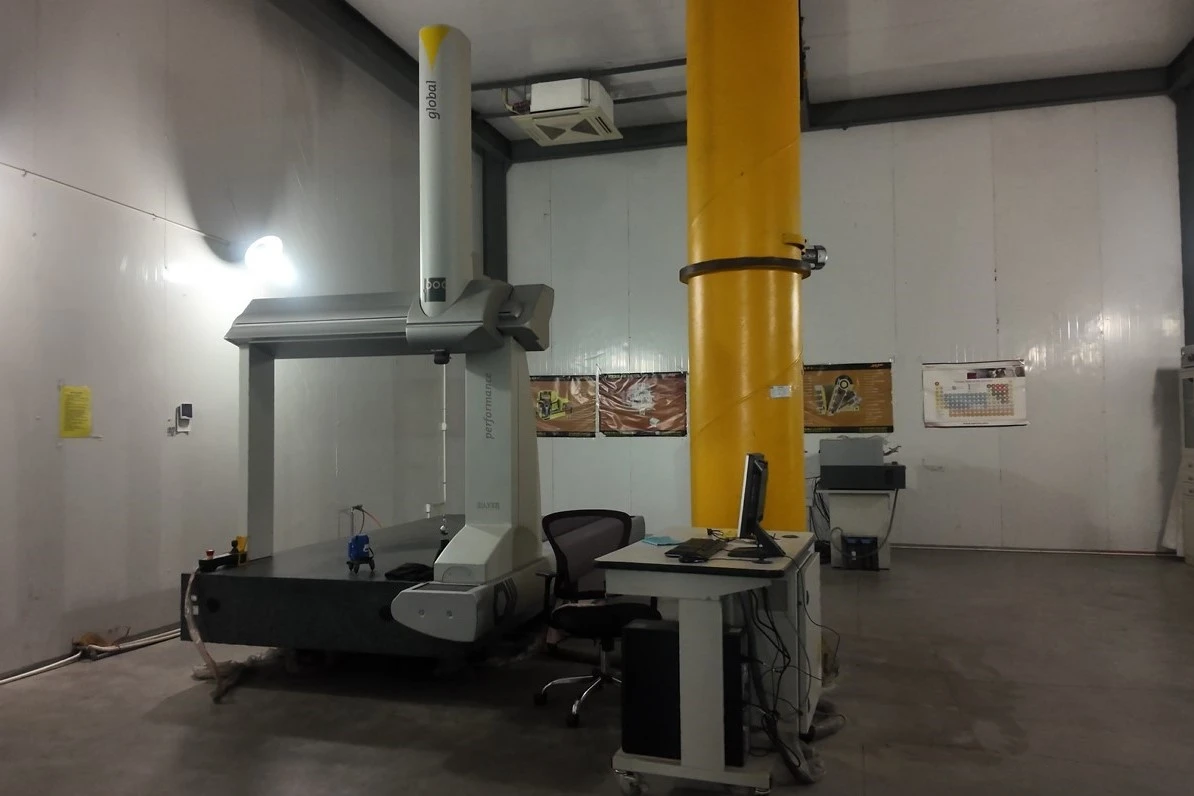

Multi-stage quality inspection on every batch, including third-party inspection on request
03
In-house engineering team for reverse engineering and custom design
04
Case studies and customer references available on request
05
Send us your crusher model, part number, or a photo of your worn side plate for a fast, accurate quote.
