Quzhou Horbon Mining Parts Co., Ltd. is one of the leading manufacturers and suppliers of crusher upper frame in China. With abundant experience, we are committed to providing high quality customized service and OEM service to global clients. Welcome to buy advanced crusher upper frame made in China here from our factory. Contact us for quotation.

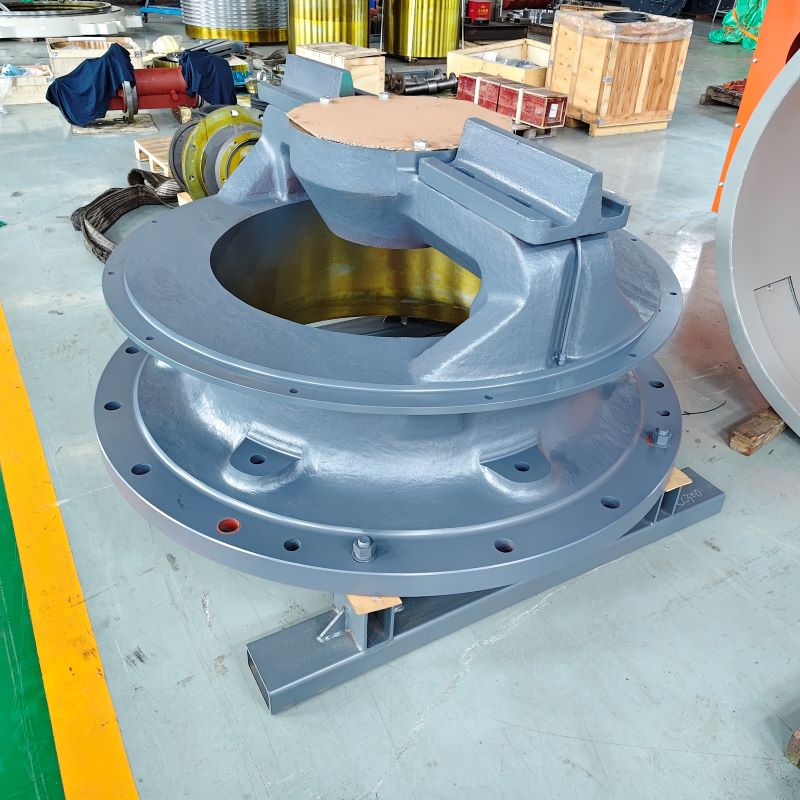

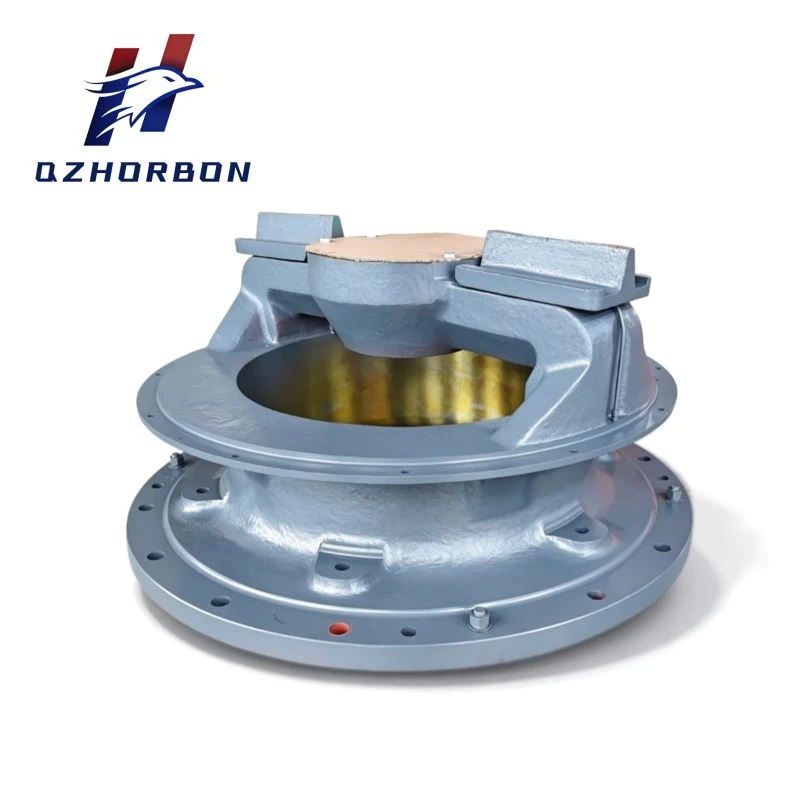

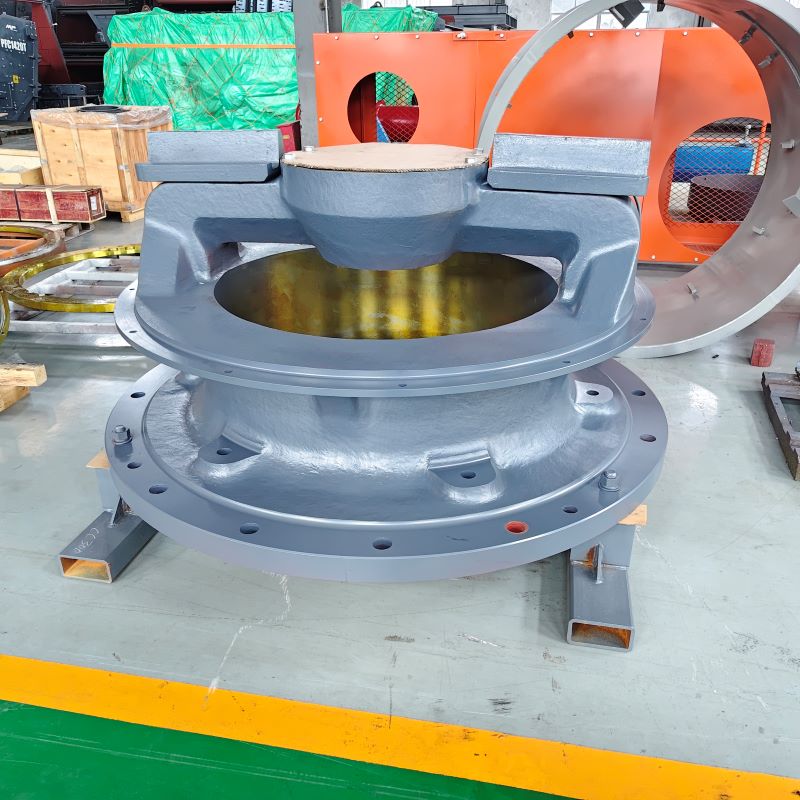

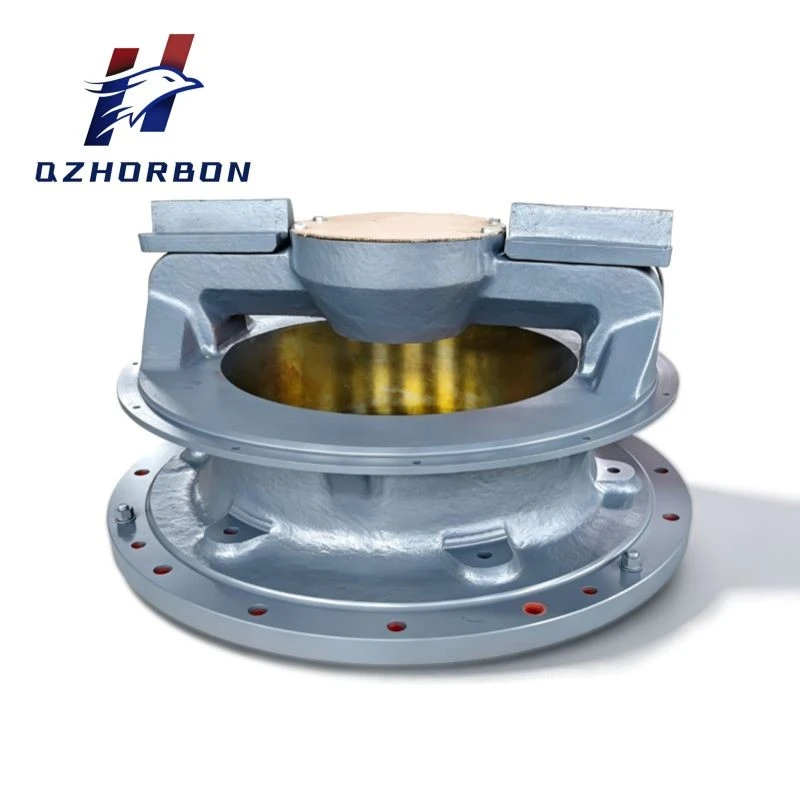

Crusher Upper Frame (Top Shell) – OEM Replacement for Cone Crushers
The crusher upper frame, also known as the top shell or upper frame assembly, is one of the most critical structural components of a cone crusher. It houses the spider assembly, main shaft, and eccentric bushing, and carries the full crushing load transferred from the mantle and concave. A worn, cracked, or poorly cast crusher upper frame directly affects crushing efficiency, alignment accuracy, and machine safety - which is why sourcing a dimensionally accurate, high-strength replacement matters as much as the price.
At Quzhou Horbon Mining Parts Co., Ltd, we manufacture crusher upper frames and complete top shell assemblies as OEM-equivalent replacement parts, machined and cast to match original part numbers and tolerances - so installation is drop-in, without on-site rework.
Product Overview
Product name: Crusher Upper Frame / Top Shell Assembly
Compatible cone crusher series: Fits standard and short-head cone crusher models (e.g. CC300 / CC300S type frames), and can be produced against your original part drawing or sample for other brands
Compatible brands: Metso, Sandvik, Terex, Trio, and other domestic/international cone crusher brands - OEM part-number matching supported
Material options: High manganese steel, chrome-molybdenum alloy steel, bi-metal wear-resistant construction
Process: Precision sand casting + CNC finish machining + quench heat treatment
MOQ: 5 pieces
Lead time: 15–30 days
Trade terms: FOB / CIF, shipped from Shanghai or Ningbo
Why the Upper Frame Casting Quality Matters
A crusher upper frame is a load-bearing structural casting, not a simple wear part. Porosity, uneven wall thickness, or poor heat treatment in the frame casting can lead to fatigue cracking under cyclic crushing load. Every crusher upper frame we produce goes through raw material spectral analysis, HRC hardness testing, 3D coordinate dimensional inspection, and non-destructive flaw detection before shipment, with third-party inspection available on request - so the frame holds tolerance and structural integrity over the full service life of the machine.
Horbon is a factory-direct manufacturer based in Quzhou, Zhejiang, operating a 13,000 m² production facility with in-house casting, heat treatment, and CNC machining capability - the same production chain used for gears, bushings, main shafts, and complete crusher frame assemblies. This vertical integration means the crusher upper frame you order is cast, machined, and inspected under one roof, giving us direct control over dimensional accuracy and material composition, rather than relying on outsourced subcontractors.
OEM & ODM Support for Crusher Upper Frame Orders
OEM production
Send us your original part number or 3D drawing and we produce your crusher upper frame to exact spec, including custom logo laser marking on request.
Reverse engineering (ODM)
No drawing available? Ship us your worn or damaged upper frame / top shell and our 20-person engineering team will reverse-engineer the geometry and issue a 2D/3D drawing for your approval, typically within 3 days.
Material customization
Need a specific alloy ratio for high-impact or high-abrasion conditions? Our lab and smelting furnace support custom material formulation.
Export packaging
Fumigated wooden crates or steel frame packaging available for long-distance ocean freight, protecting the frame casting from rust and transit damage.
Service & Logistics
- Regular stock available for common crusher upper frame models - faster turnaround for repeat orders
- 7×24 online technical response
- Free replacement for confirmed quality issues
- Installation guidance documents and photo/video technical support
- 50–200 overseas partner mines and crushing plants served across Southeast Asia, the Middle East, Africa, Europe, the Americas, South Asia, and Australia
Request a Quote
Send us your original part number, drawing, or a sample photo of your existing crusher upper frame, and our engineering team will confirm compatibility and provide a quotation with lead time within 24 hours.
