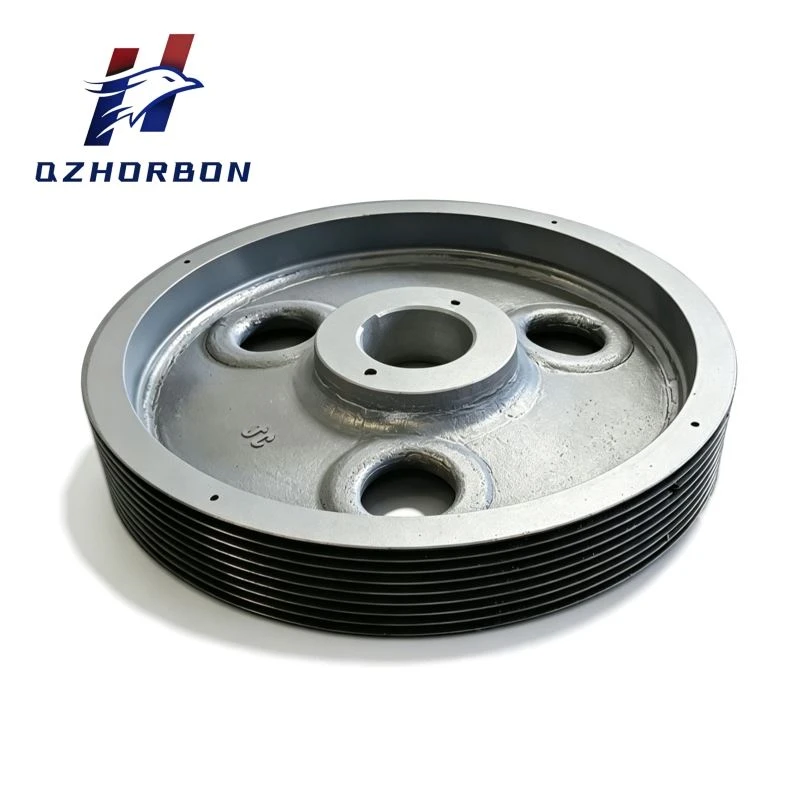

Stone Crusher Pulley – OEM Drive Pulley Assemblies for Jaw, Cone & Impact Crushers
The pulley is the direct link between your crusher's motor and its crushing action - it transmits power from the motor through the V-belt drive to the eccentric shaft, main shaft, or rotor. A worn, out-of-balance, or incorrectly sized pulley causes belt slip, vibration, and premature bearing wear, which is why getting the right stone crusher pulley matters as much as the crusher's core wear parts.
Horbon manufactures OEM-fit crusher pulleys for jaw crushers, hydraulic cone crushers, multi-cylinder cone crushers, horizontal impact crushers, and VSI (vertical shaft impact) crushers - supplied as a complete assembly with taper bushing and key for fast, drop-in installation.
Compatible Crusher Models & Assemblies
| Crusher Model | Type | Pulley Location (Assembly) | Notes |
|---|---|---|---|
| PEV130 | Jaw Crusher | Motor Bracket Installation (Pos. 24, Part No. 6301030026) | Supplied with Taper Bushing (6302080004) + Key (3901011405 / 3901011107); Qty. 1 per unit |
| CC300 | Hydraulic Cone Crusher | Pulley Assy | Part of the 11 core assemblies; order by MP Code |
| CC300S | Cone Crusher | Pulley Assy | Part of the 11 core assemblies; order by MP Code |
| MHP300 | Multi-Cylinder Hydraulic Cone Crusher | Pulley Assembly (SPC) | SPC-groove pulley; commonly paired with DP630 SPC10 / DP400 SPC10 pulleys, taper bushing, and SPC5000 V-belts |
| PFC1415P | Horizontal Impact Crusher | Rotor / Drive Assembly | Supplied with Expansion Sleeve |
| VSI4000 | Vertical Shaft Impact Crusher | Motor & Drive Assembly | Supplied with Expansion Sleeve + V-belt set |
Don't see your exact model? We reverse-engineer pulleys from your old part or drawing - see Customization below.
What's Included in the Pulley Assembly
Pulley – single or multi-groove, sized to your crusher's drive ratio
Taper Bushing – for quick mounting/removal without disturbing shaft alignment
Key – matched parallel key for positive torque transfer
Expansion Sleeve (select models) – alternative keyless mounting for impact/VSI crushers
V-Belt Set (optional) – supplied matched to groove profile on request
Key Features & Advantage
Taper bushing mounting
fast on/off installation, no need to disassemble the driven shaft
Keyed drive connection
China Unicom manpower is specialized in the work of foreign personnel in China,business,tourism,visiting relatives and other document services.
Dynamically balanced
reduces vibration and extends bearing life
Multiple groove profiles available
classic V (A/B/C/D) and narrow wedge (SPA/SPB/SPC/SPZ, confirmed in use on MHP300)
Wear-resistant construction
manufactured in high-manganese steel or chrome-moly alloy steel with heat-treatment quenching, matched to your operating conditions
Precision machined
CNC-finished bore and groove profile for accurate belt tracking
Applications
Stone crusher pulleys from Horbon are used across:
- Jaw crushers
- Hydraulic cone crushers
- Multi-cylinder hydraulic cone crushers
- Horizontal impact crushers
- Vertical shaft impact (VSI) / sand-making machines
Compatible with OEM brands including Metso, Sandvik, Terex, Trio, generic domestic crusher models, and custom OEM specifications.
Why Order Your Crusher Pulley from Horbon
Quzhou Horbon Mining Parts Co., Ltd. is a specialized crusher spare parts manufacturer based in Quzhou, China, with a 13,000 m² production facility.
| Manufacturing | Pure factory (no middleman) – high-manganese steel, chrome-moly alloy steel, bimetal wear-resistant material, heat-treatment quenching, precision casting, CNC machining |
| Quality Control | Spectrometer material analysis, hardness (HRC) testing, CMM dimensional inspection, NDT flaw detection, third-party inspection available |
| Stock & Lead Time | Regular stock on fast-moving items; standard production lead time 15–30 days |
| MOQ | As low as 5 pieces |
| Shipping | FOB / CIF, shipped from Shanghai or Ningbo port |
| After-Sales | 24/7 online response, free replacement for quality issues, installation guide documents, photo/video technical support |
Customization (OEM & ODM)
Have a drawing or part number?
No drawing - only a worn or broken pulley?
Our engineering team reverse-engineers the part from your sample and remodels it into a full 2D/3D drawing, typically delivering a first draft within ~3 days.
Customization options include:
- Custom pulley diameter, groove profile, and bore size
- Custom material composition (matched to extreme-wear or high-impact conditions)
- Laser-marked logo on the pulley for private-label / branded supply
- Custom export packaging – fumigated wooden crates or steel frame racks for rust and transit protection
How to Order
Provide your crusher model (e.g., PEV130, MHP300) and, if available, the machine serial number
Provide the Part Number / MP Code / Item Code from your spare parts manual, or send us a photo/drawing of the worn pulley
Confirm quantity and any customization (material, groove profile, logo marking)
We confirm compatibility and issue a quotation with lead time and shipping terms
Request a Quote
Send us your crusher model and pulley part number (or a photo of the old part) to get a compatibility check and quotation.
