Jaw Crusher Rear Wall – Heavy-Duty Replacement Frame Parts | Horbon
Reliable Rear Wall Castings for Jaw Crushers, Built to Outlast the Original

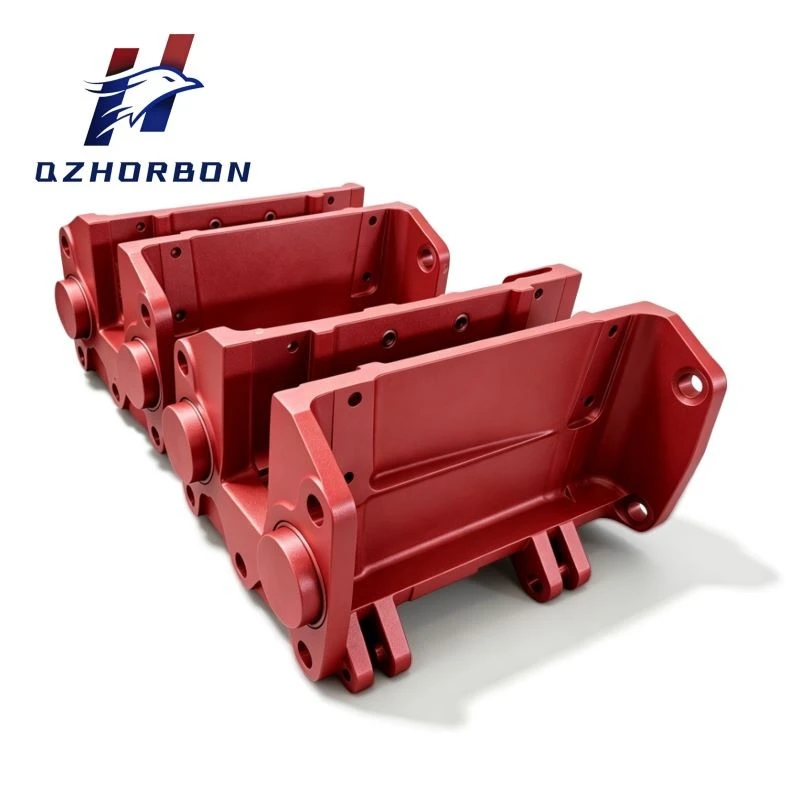

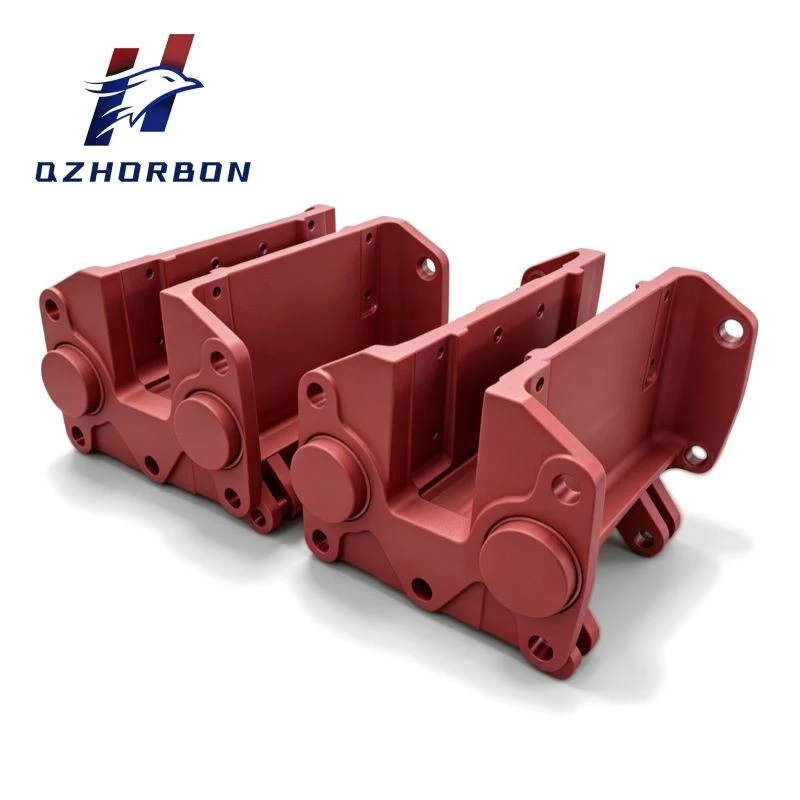

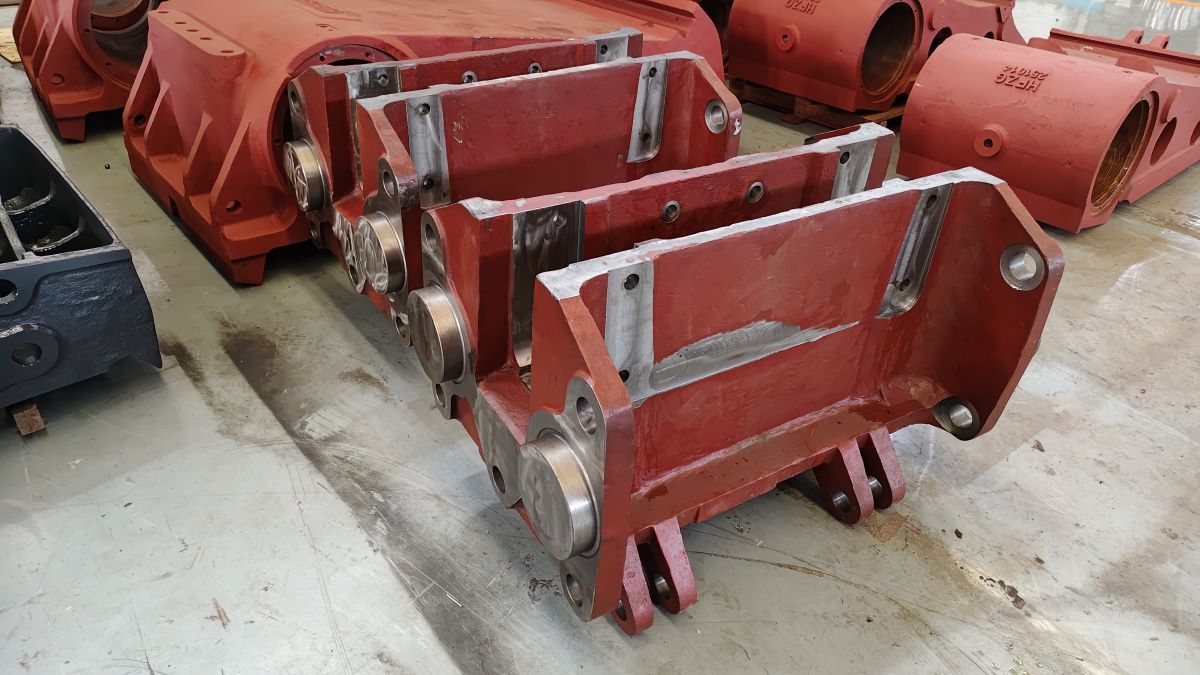

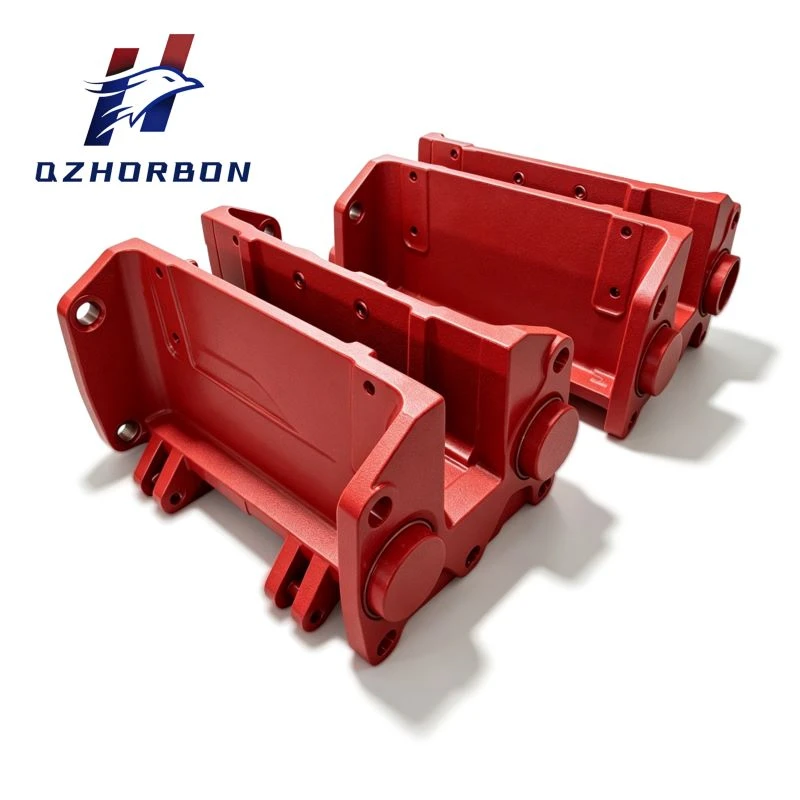

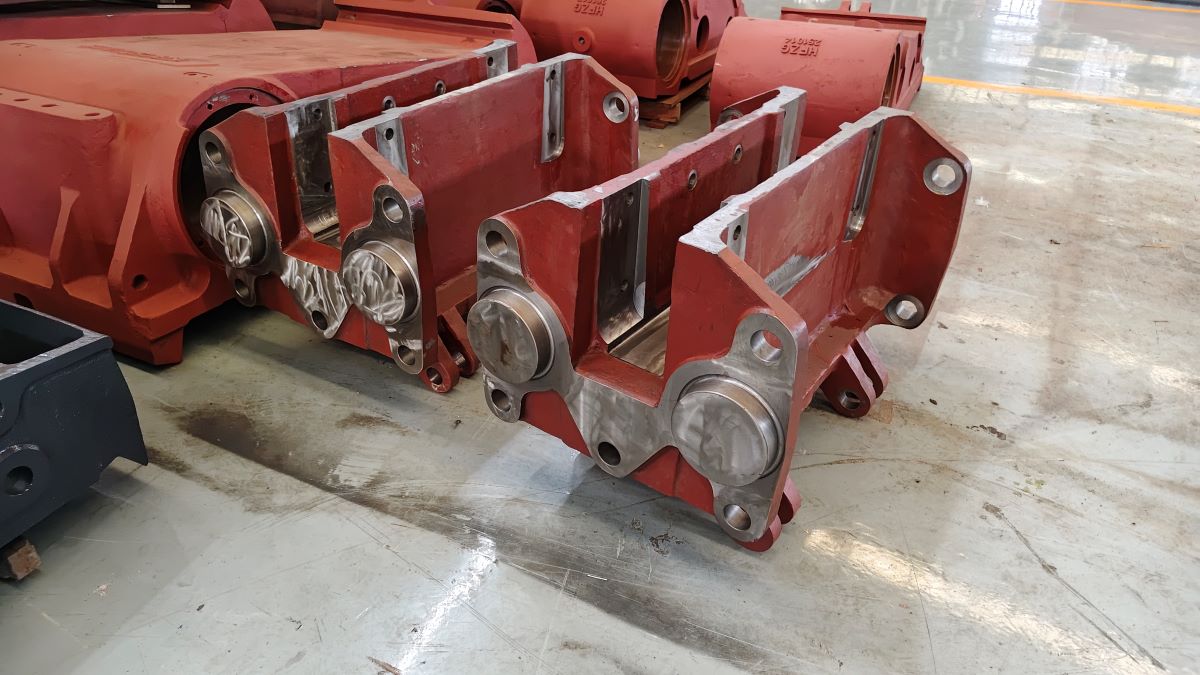

The rear wall (also known as the rear frame plate or rear end plate) is one of the most heavily stressed structural components in a jaw crusher. Together with the front frame and side plates, it forms the main frame that absorbs the full impact and crushing force generated during operation. A poorly cast or undersized rear wall leads to frame cracking, misalignment, and costly unplanned downtime.
At Quzhou Horbon Mining Parts Co., Ltd., we manufacture replacement crusher rear walls engineered to match OEM dimensions and mechanical performance - often with improved wear resistance and structural durability.
Why Choose Horbon Rear Walls?
The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.
Precision Fit
Manufactured to original equipment specifications (OEM part numbers, dimensions, and bolt patterns), ensuring drop-in compatibility with your existing frame assembly.
01
High-Strength Materials
Cast from high-manganese steel or chrome-moly alloy steel, with heat treatment (quenching) for superior impact resistance and fatigue life.
02
Precision Casting & CNC Machining
All mating surfaces and bolt holes are CNC-machined for accurate alignment with the front frame, side plates, and pitman assembly.
03
Rigorous Quality Control
Every casting undergoes spectral analysis of raw materials, Rockwell hardness (HRC) testing, 3D coordinate dimensional inspection, and non-destructive flaw detection before shipment.
04
Fast Delivery
Standard production lead time of 15–30 days, with in-stock inventory available for common models to minimize your downtime.
05
Compatible Crusher Types
Our rear wall castings are produced for a wide range of jaw crusher models and brands, including:
- Metso-style jaw crushers
- Sandvik-style jaw crushers
- Terex jaw crushers
- Trio jaw crushers
- Common domestic Chinese jaw crusher models
- OEM and reverse-engineered custom designs
If you don't have drawings, simply send us your damaged rear wall or worn part sample - our engineering team can reverse-engineer the component, generate 2D/3D drawings within approximately 3 days, and recommend design improvements to extend service life under your specific operating conditions (heavy abrasion, high impact, etc.).
Customization & OEM/ODM Services
Logo Marking
Laser engraving of your brand logo directly on the casting
Custom Packaging
Fumigated wooden cases or steel frame packaging designed for safe, rust-free overseas shipping
Material Customization
Custom alloy composition available based on your lab specifications
Design Optimization
Our 20-person technical team can modify wall thickness, ribbing, and material grade to suit extreme wear or high-impact mining conditions
Order Information
- Minimum Order Quantity (MOQ): 5 pieces
- Trade Terms: FOB / CIF
- Shipping Ports: Shanghai, Ningbo
- Payment & Warranty: Free replacement for confirmed quality issues; 7×24 online technical support with installation guides and video/photo assistance
About Quzhou Horbon Mining Parts Co., Ltd.

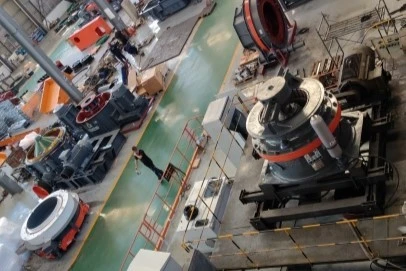

Located in Quzhou, Zhejiang Province, China, Horbon is a dedicated manufacturing factory (not a trading company) specializing in wear and spare parts for crushing equipment, including gears, bushings, bronze sleeves, mainshafts, rotor assemblies, fasteners, springs, oil seals, and pulleys. With over 200 overseas clients across Southeast Asia, the Middle East, Africa, Europe, and the Americas, we support both standard replacement parts and full OEM/ODM custom manufacturing.
Send us your crusher model jaw profile, or a photo of your worn rear wall - we'll quote a compatible replacement within 24 hours.
